DISCOVERY

DISCOVERY

Step-through unisex frame built
for road or trail. The ultimate
transport alternative.

FEATURES

Low STEP THRU Unisex Frame for ease of mounting and dismounting

Front Suspension for riding comfort. Front and Rear Lights to be easily seen

7 Speed Shimano Gears with Trigger Shifter for easy adjustment and riding on any terrain

650B Wheels with 2.1” Tyres for riding comfort with Front and Rear disc brake

Charge in the bicycle or remove to charge indoors

200/250W Rear Hub Drive Motor with Disc Brake

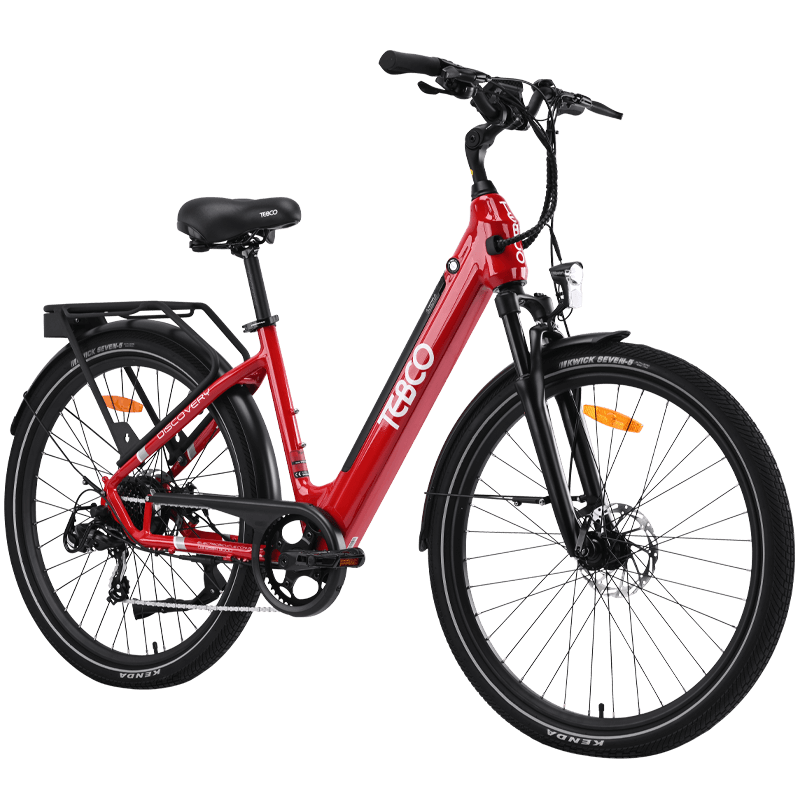

Royal Red

Sapphire

Mechanical
Frame	6061 Grade Alloy
Wheel Size	650B 36H Front and Rear
Fork	Zoom Suspension
Handlebar	ZOOM HB-T320
Stem	PROMAX MQ-565S
Seatpost	28.6mm Promax Seatpost
Seat Clamp	28.6mm Promax Seat Clamp
Saddle	Tebco Saddle Wide Based
Shifters	SHIMANO SL-M315
Derailleur	SHIMANO TOURNEY 7Spd
Rims	650B 36H Double Wall Alloy (Black)
Hubs	Modus Aluminum Hub
Spokes	12g 2.4mm F / 12g 2.6mm R Stainless Steel Black
Tyres	KENDA K924 650B x 2.125in
Cranks	PROMAX E44PP/32 170MM 48T
Pedals	YONGHUA 8X
Chain	KMC Z51/RB/140L
Brakes Front	TEKTRO Aries Mechanical Disc
Brakes Rear	TEKTRO Aries Mechanical Disc
Brake Levers	WUXING 108PPD/4
Mudguards	Black Plastic 650B x 65mm

Electrical
Motor	EWO 36V 200W DGW07-32 650B Rear Wheel / EWO 36V 200W DGW07-32 27.5in Rear Wheel
Controller	15Ah LISHUI Brushless LSW1155-59M
Battery	36V 10.5Ah 40pcs 18650 2600MAh
Battery Life	Up to 800 recharges from flat
Battery Weight	2.4kg
Display Panel	KEY DISPLAY KD718U
Twist Grip Acc Assy	Wuxing 158X.T / HT406 Slimline
Pedal Activation	KUNTENG Left Crank Mount
Light Front	BUCHEL LED 51252712 Static Illumination
Light Rear	BUCHEL LED 51254523 Static Illumination
Charger	Sans 36V 2Amp Lithium AU Compliant
Main Cable	JULET 1T5 Waterproof Quick Release
Audible Warning	HONKA HOOTA Black
Max Speed	25kmh
Max Range	80km 1:1 Pedal Assist
Bicycle Weight	25kg incl battery
