FUNCTIONALITY AND COMFORT.
Features
650B wheels / alloy frame
Weight– 22kg including battery
Max. speed 25kmh / Max. range 80km
250W DAPU mid drive motor
36V 10.4Ah Samsung lithium battery
Latest in-frame battery design
High Quality 2.125 Kenda K1047 Tyres
8 speed Shimano trigger shift gears
High quality 2.125in Kenda K1047 tyres
LCD speedo battery indicator trip computer
Hydraulic disc brakes front and rear
Comfy VELO GEL saddle for enhanced ride
No licence or registration required

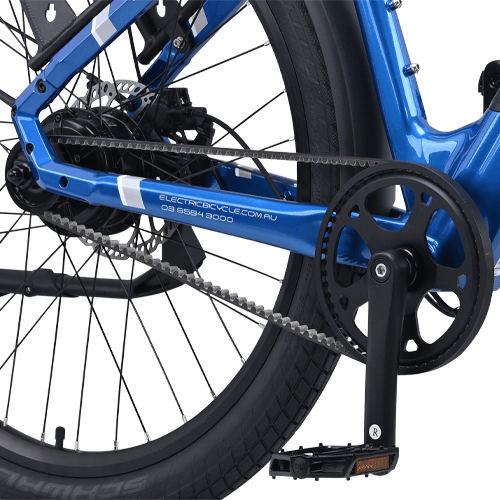

HI-TORQUE MID DRIVE MOTOR
250W Super Responsive DAPU Mid Mount Motor
HYDRAULIC DISC BRAKES
Tektro Aries Hydraulic Disc Brakes Front And Rear For Extreme Stopping Power

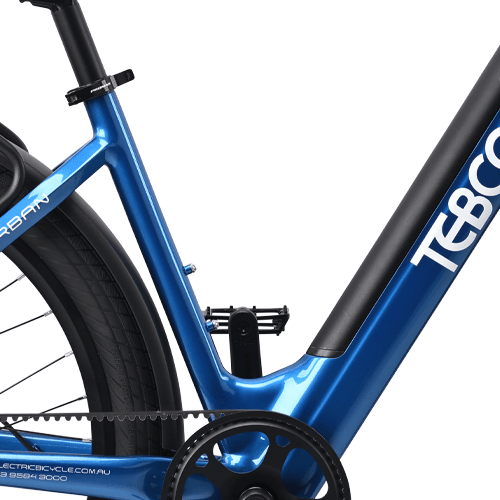

UNISEX STEP-THRU FRAME
Low ‘step Thru’ Frame For Ease And Safety When Mounting And Dismounting
SOFT COMFY SADDLE
Super Soft And Comfy Velo Gel Saddle To Protect Your ‘precious’ Parts

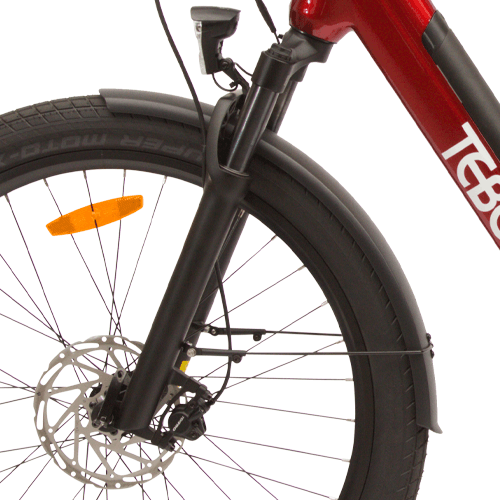

FRONT SUSPENSION FORK
Suntour Nex Suspension Fork Irons Out The Bumps For A Smoother Enhanced Ride
LIGHTS FRONT AND REAR
Ultra Bright Led Head Light And Taillight For Safer After-hours Riding
|
Maroon |
Sapphire |
Mechanical |
|
|---|---|
| Frame | 6061 Grade Alloy |
| Wheel Size | 650B 36H Front and Rear |
| Fork | SUNTOUR NEX Allum Suspension |
| Handlebar | ZOOM HB-T320 |
| Stem | PROMAX MQ-565S |
| Seatpost | PROMAX SP-2003 & 27.2 x 400mm |
| Seat Clamp | Alloy Quick Release 27.2mm |
| Saddle | VELO VL-6100 GEL |
| Shifters | SUNRACE DL500 |
| Derailleur | SHIMANO ARDTY500D |
| Rims | POWER CIRCLE P23DM 36H Double Wall Alloy |
| Hubs | PT-D112DSE 3/8*13*36*135*145 |
| Hubs | HX-D041DSE M9*13*36*108 |
| Spokes | 13g 2.2mm F / 12g 2.6mm R Stainless Steel |
| Tyres | KENDA K1052 24in x 2.1in |
| Cranks | PROMAX E44PP/32 170MM 44T |
| Pedals | YONGHUA 8X |
| Chain | KMC Z51/RB/140L |
| Brakes Front | TEKTRO T 285 Hydraulic Disc |
| Brakes Rear | TEKTRO T 285 Hydraulic Disc |
| Brake Levers | TEKTRO T 285 Hydraulic Disc |
| Mudguards | Black Plastic 24in x 65mm |
| Stand | Chain Stay Side Mount Adjustable Alloy |
| Rear Rack | Alloy 650B / 700C Pannier Compatible |
Electrical |
|
|---|---|
| Motor | DAPU MD250 MID Frame Mount 36V 250W |
| Efficiency | Greater than 80% |
| Torque | 95Nm - Integrated Torque Sensor |
| Controller | DAPU - 15Amp Digital Internal Integration |
| Battery | SAMSUNG 36V 10.4Ah 40pcs 18650 2600MAh |
| Battery Life | Up to 800 recharges from flat |
| Battery Weight | 2.4kg |
| Display Panel | DAPU LCD High Resolution |
| Operation Controls | Left Handlebar DAPU Compatible |
| Pedal Activation | DAPU Motor Integration |
| Light Front | BUCHEL LED 51252712 Static Illumination |
| Light Rear | BUCHEL LED 51254523 Static Illumination |
| Charger | Sans 36V 2Amp Lithium AU Compliant |
| Main Cable | JULET 1T5 Waterproof Quick Release |
| Audible Warning | HONKA HOOTA Black |
| Max Speed | 25kmh |
| Max Range | 80kmh 1:1 Pedal Assist |
| Bicycle Weight | 24kg incl battery |
Sizing |
|
|---|---|
| Seat Tube | 450mm |
| Step Over | 450mm |
| Max Seat Height | 1060mm |
| Min Seat Height | 800mm |
| Length | 1850mm |
| Width | 670mm |

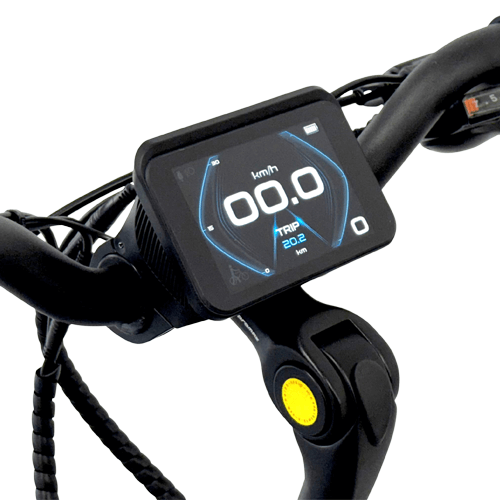

DISPLAY
ELITE
Top of the range with digital Trip Computer, Speedometer, Odometer, Battery Charge Level, Pedal Activation System.
$3299
Power Assisted Bicycles (PABS)200W motor output |
Electric Powered Activated Cycles (EPACS)250W motor output - new category |
