Transporter

Features

24in Wheel Front and Rear

Max Speed 25kmh / Max Range 60kms

200W Motor / Twist Grip Throttle and Pedal Activation

36V 10.4 Ah Samsung Lithium Battery

Latest In-Frame Battery Design

7 Speed Shimano Trigger Shift Gears

High Quality 2.125 Kenda K1047 Tyres

LCD Indicator Trip Computer / Speedo / Battery Gauge

Disc Brake Front and Dual Disc Brake Rear

No Licence or Registration Required

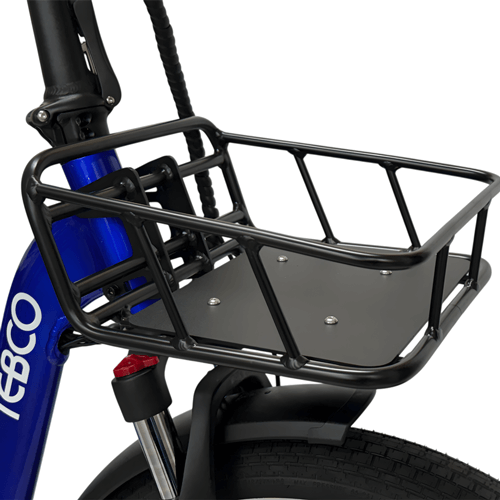

electric-bike-tricycle-front-basket
7sp Shimano Trigger Shifter
Coupled with the 9 level Pedal Activation System the 7sp Shimano Trigger Shift offers unlimited pedal & power combinations.
electric-bike-tricycle-elite-indicator-panel
DISC BRAKES FRONT AND REAR
Quality Shimano disc brakes to both front and rear wheels ensures safe and effective stopping power when it is needed.

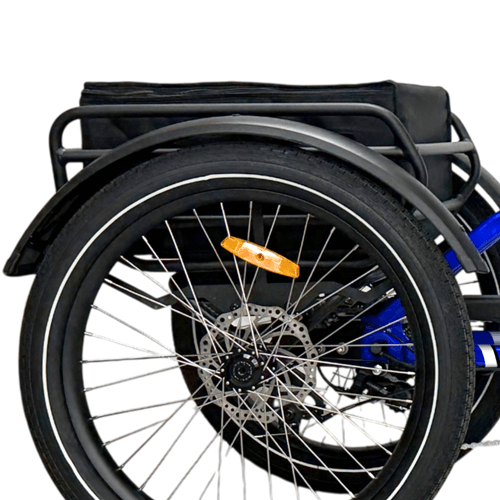

electric-tricycle-cargo-basket

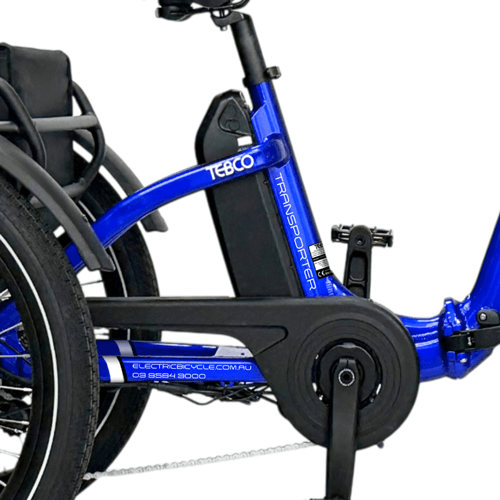

Latest in Frame Battery Design
10.4ah Samsung lithium cells built into ‘In-Frame’ battery case hidden in frame tube making it appear a normal bicycle.
LED Lights Front and Rear
Front and rear LED lights for safe night time riding making this the ideal bicycle for short or long haul transport.
electric-bike-tricycle-gears

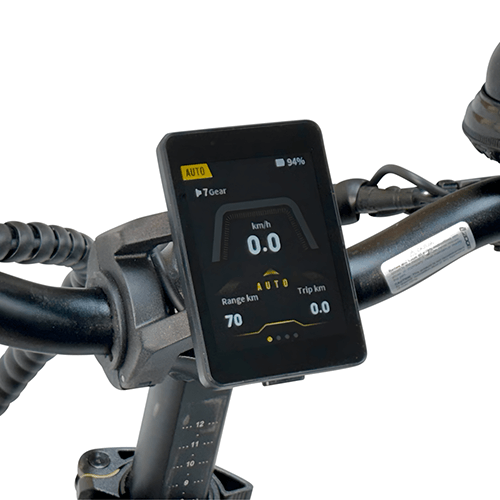

LCD Trip COMPUTER
Top of the range with digital Trip Computer, Speedometer, Odometer, Battery Charge Level, Pedal Activation Level indicator.
electric-bike-tricycle-lockable-battery
Suspension Front Fork
High Grade Suntour NEX suspension fork to smooth out that bumpy road for enhanced riding experience.

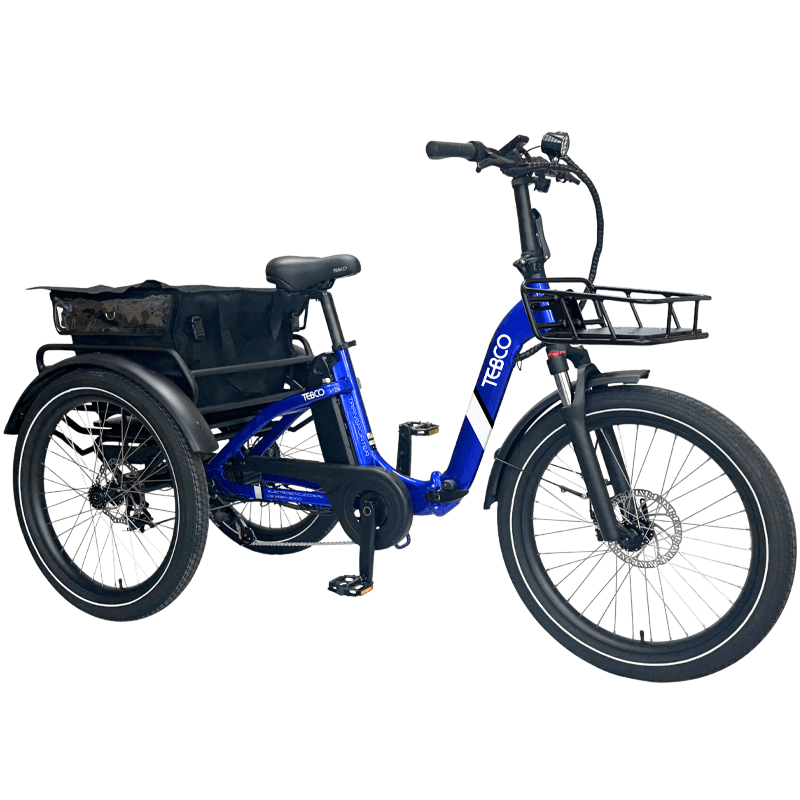

Transporter Electric Tricycle

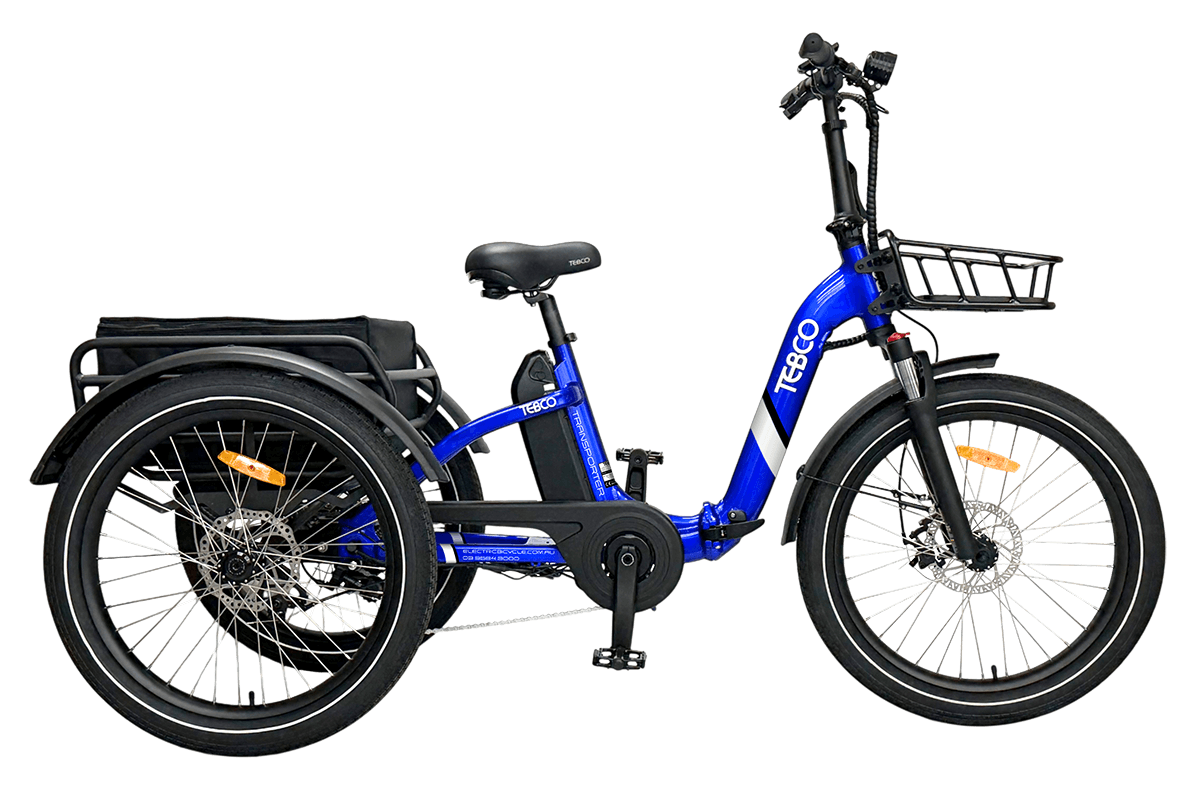

Blue

Red

Mechanical

Frame 6061 Grade Alloy
Wheel Size 24in 36H Front and Rear
Fork ZOOM 565D-24"(AMS)Teeth Headtube ф28.6×ф25.4 *183mm, Travel Distance: 80mm
Handlebar PROMAX HB-T320, Hole Size: 17.5mm 600W P48 W600 L175x45 H60x-6 3.0T ENC
Stem PROMAX MQ-565S
Seatpost SP-252 28.6*400mm
Seat Clamp Promax 355Q @34.9mm C2
Saddle JT6653 Soft Saddle
Shifters SHIMANO ASLM3157RC / Length:2400mm / 7 Speeds
Derailleur SHIMANOARDTY500D
Rims PARWEIER 25DE 24Inch 36H Double Wall Alloy
Hubs PARWEIER 25DE 24Inch 36H Double Wall Alloy
Spokes 13g 2.2mm F / 12g 2.6mm R Stainless Steel 224mm/226mm 194mm/196mm
Tyres KENDA K1052 24in x 2.1in
Cranks PROMAX E44PP/32 170MM 44T
Pedals YONGHUA 8X
Chain Z7/RB/140L
Brakes Front Tektro MD-300 AS1.0F Front Disc Brake
Brakes Rear Tektro MD-300 AS1.0F Rear Disc Brake
Brake Levers WUXING 108PPD/4 Locking With Power Cut Off
Mudguards Black Plastic 24in x 65mm

Electrical

Motor SHENGYI 36V 200W DGW07-32 24in Front Wheel
Controller 15Ah LISHUI Brushless LSW1155-59M
Battery LG 36V 10.4Ah 40pcs 18650 2600MAh
Battery Life Up to 800 recharges from flat
Battery Weight 2.4kg
Display Panel KEY DISPLAY KD51C
Operations Control Left Handlebar KD51C Compatible
Twist Grip Acc Assy Wuxing 158X.T / HT406 Slimline
Pedal Activation KT-V12L
Light Front BUCHEL LED 51252712 Static Illumination
Light Rear BUCHEL LED 51254523 Static Illumination
Charger Sans 36V 2Amp Lithium AU Compliant
Main Cable JULET 1T5 Waterproof Quick Release
Audible Warning HONKA HOOTA Black 'I LOVE MY BIKE'
Max Speed 25kmh
Max Range 60km 1:1 Pedal Assist
Tricycle Weight 33kg incl battery

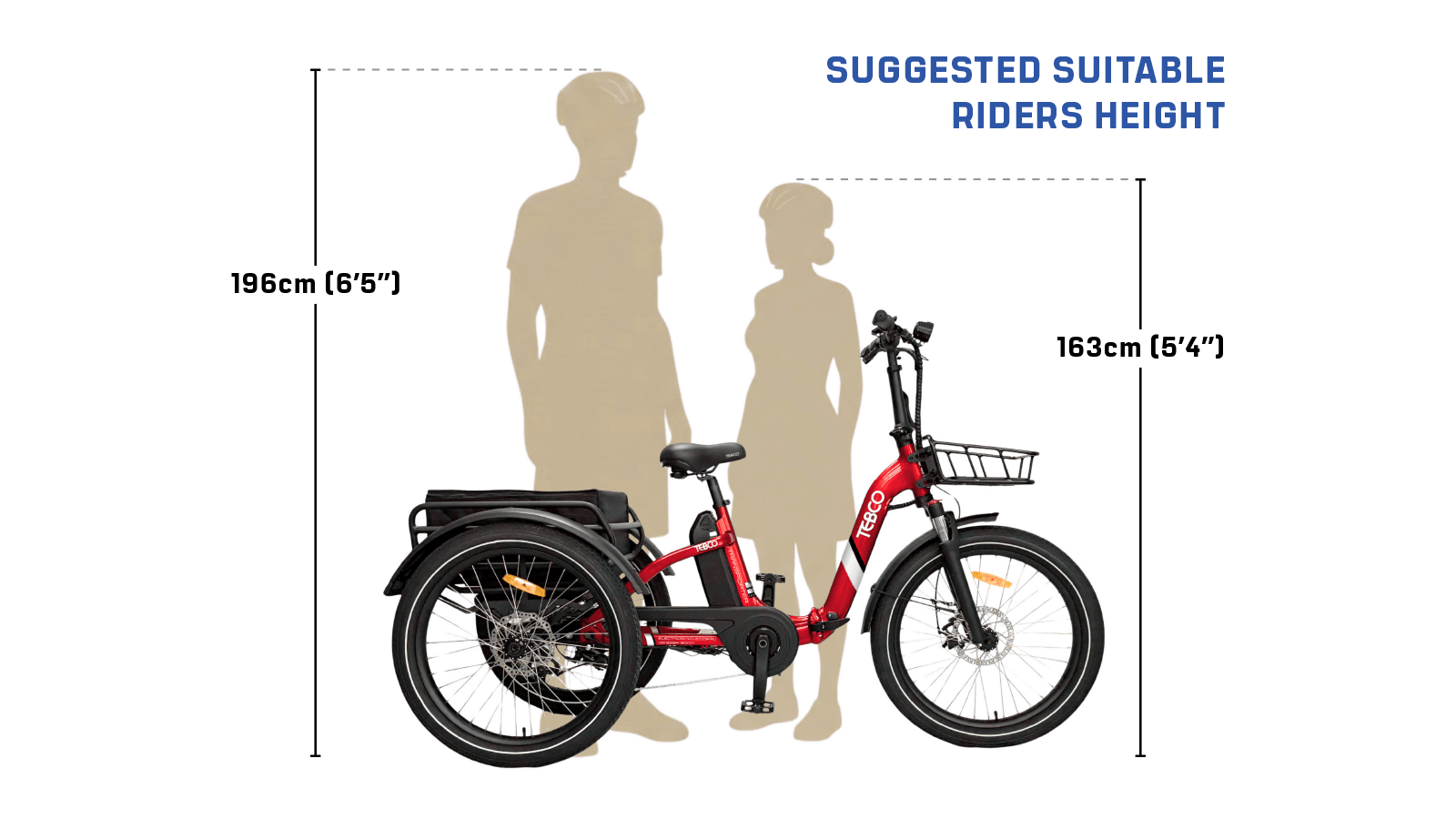

Sizing

Length 1900mm
Width 800mm
Max Seat Height 1000mm
Min Seat Height 780mm
Step Over 390mm

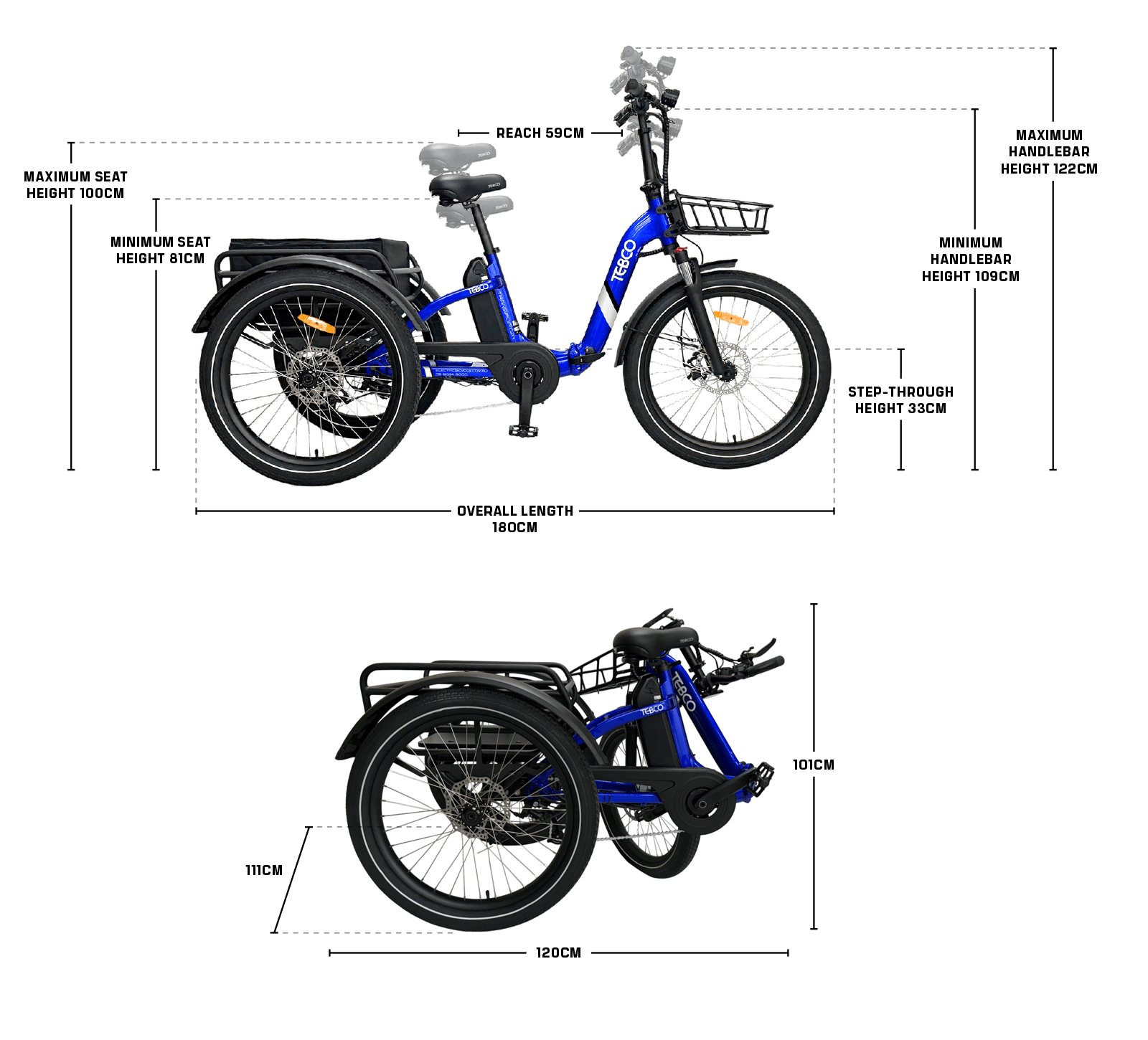

DIMENSIONS

TRANSPORTER Dimensions

DISPLAY

ELITE

Top of the range with digital Trip Computer, Speedometer, Odometer, Battery Charge Level, Pedal Activation System.

$3299
Power Assisted Bicycles (PABS)

200W motor output
The motor is activated by either a ‘twist grip accelerator’ OR by ‘pedal activation’

Electric Powered Activated Cycles (EPACS)

250W motor output - new category
The motor is ONLY activated by ‘pedal activation’ In short you MUST pedal to activate the motor and if you STOP peddling, the motor stops.

×
