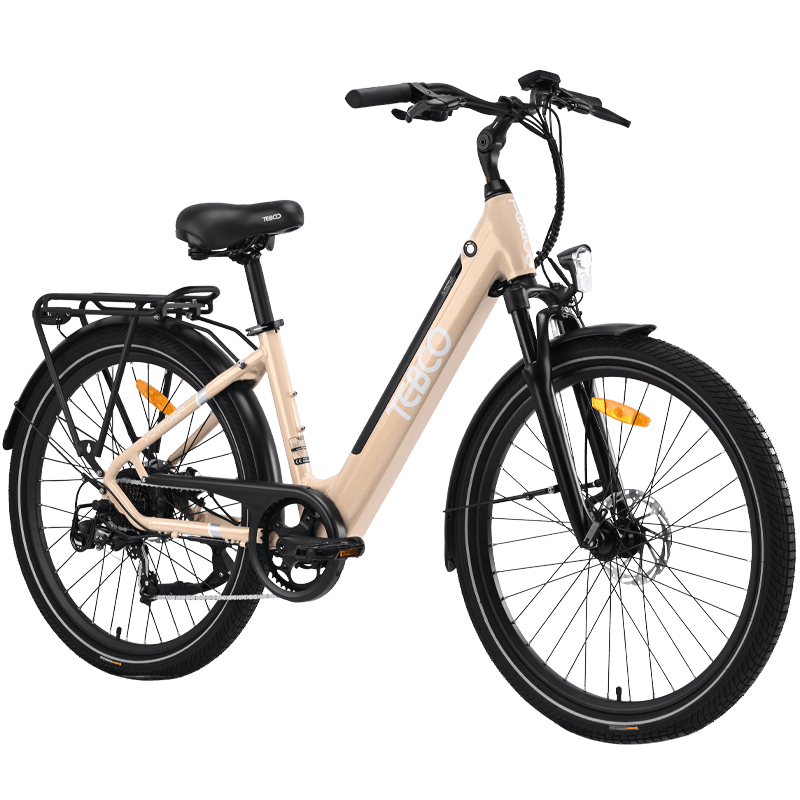

Voyager

Features

26in Wheels / alloy frame

Weight– 24kg including battery

Max. speed 25kmh / Max. range 80km

200W rear drive motor

36V 10.4Ah Samsung lithium battery

Latest in-frame battery design

High Quality 2.2in Kenda Tyres

Single Speed Gears

LCD speedo battery indicator trip computer

Tektro Aries disc brakes front and rear

No licence or registration required

HI-TORQUE MID-DRIVE MOTOR
SMOOTH EFFORTLESS RIDING
Quality KENDA 2.2in tyres coupled with TEKTRO Aries Disc Brakes offers safe and sure on road performance.
HYDRAULIC DISC BRAKES
WIRED LED LIGHTS
Super bright LED Lights front and rear for safety during after hours riding.
UNISEX STEP-THRU FRAME
INFRAME CHARGING
Charge in the bicycle or remove to charge indoors.
SOFT COMFY SADDLE
‘STEP-THRU’ UNISEX ALLOY FRAME
Low ‘Step-Thru’ design for ease and safety when mounting and dismounting.
FRONT SUSPENSION FORK
SOFT COMFY SADDLE
Soft And Comfy Saddle To Protect Your ‘precious’ Parts
LIGHTS FRONT AND REAR
REAR WHEEL DRIVE DISC BRAKE
200W rear hub drive motor with TEKTRO Aries disc brake.

Suburban Maroon

Champagne

Sky Blue

Mechanical

Frame 6061 Grade Alloy
Wheel Size 700C 36H Front and Rear
Fork ZOOM Magnesium Single Suspension
Handlebar PROMAX HB-T305S
Stem PROMAX MA-592
Seatpost PROMAX 27.2 x 300mm
Seat Clamp Alloy Quick Release 27.2mm
Saddle KNUS KS7068
Shifters SHIMANO ASLM3157RC-7
Derailleur SHIMANO ACERA
Rims PARWEIER 700 x 40c 36H Double Wall Alloy
Hubs MODUS Aluminium
Spokes 13g 2.2mm Stainless Steel
Tyres INNOVA IA2209 700 x 40
Cranks PROMAX E44PP/32 170MM 44T
Pedals WELLGO
Chain KMC Z5GY
Brakes Front TEKTRO Aries Mechanical Disc
Brakes Rear TEKTRO Aries Mechanical Disc
Brake Levers WUXING 108PPD/4 Locking With Power Cut Off
Mudguards Black Aluminum Alloy
Stand Chain Stay Side Mount Adjustable Alloy
Rear Rack Alloy 650B / 700C Pannier Compatible

Electrical

Motor SHENGYI 36V 200W DGW07-32 24in Rear Wheel
Controller 15Ah LISHUI Brushless LSW1155-59M
Battery SAMSUNG 36V 10.4Ah 40pcs 18650 2600MAh
Battery Life Up to 800 recharges from flat
Battery Weight 2.4kg
Display Panel KEY DISPLAY KD21C
Operation Controls Left Handlebar KD21C Compatible
Twist Grip Acc Assy Wuxing 158X.T / HT406 Slimline
Pedal Activation Yonglin 12 Magnet Left Crank Mount
Light Front Spamning LED HL1900 Static Illumination
Light Rear Yonglin LED 69E Static Illumination
Charger Keyu 36V 2Amp Lithium AU Compliant
Main Cable JULET 1T5 Waterproof Quick Release
Audible Warning HONKA HOOTA Black
Max Speed 25kmh
Max Range 80kmh 1:1 Pedal Assist
Bicycle Weight 24kg incl battery

Sizing

Length 1800mm
Width 690mm
Max Seat Height 1100mm
Min Seat Height 840mm
Step Over 450mm

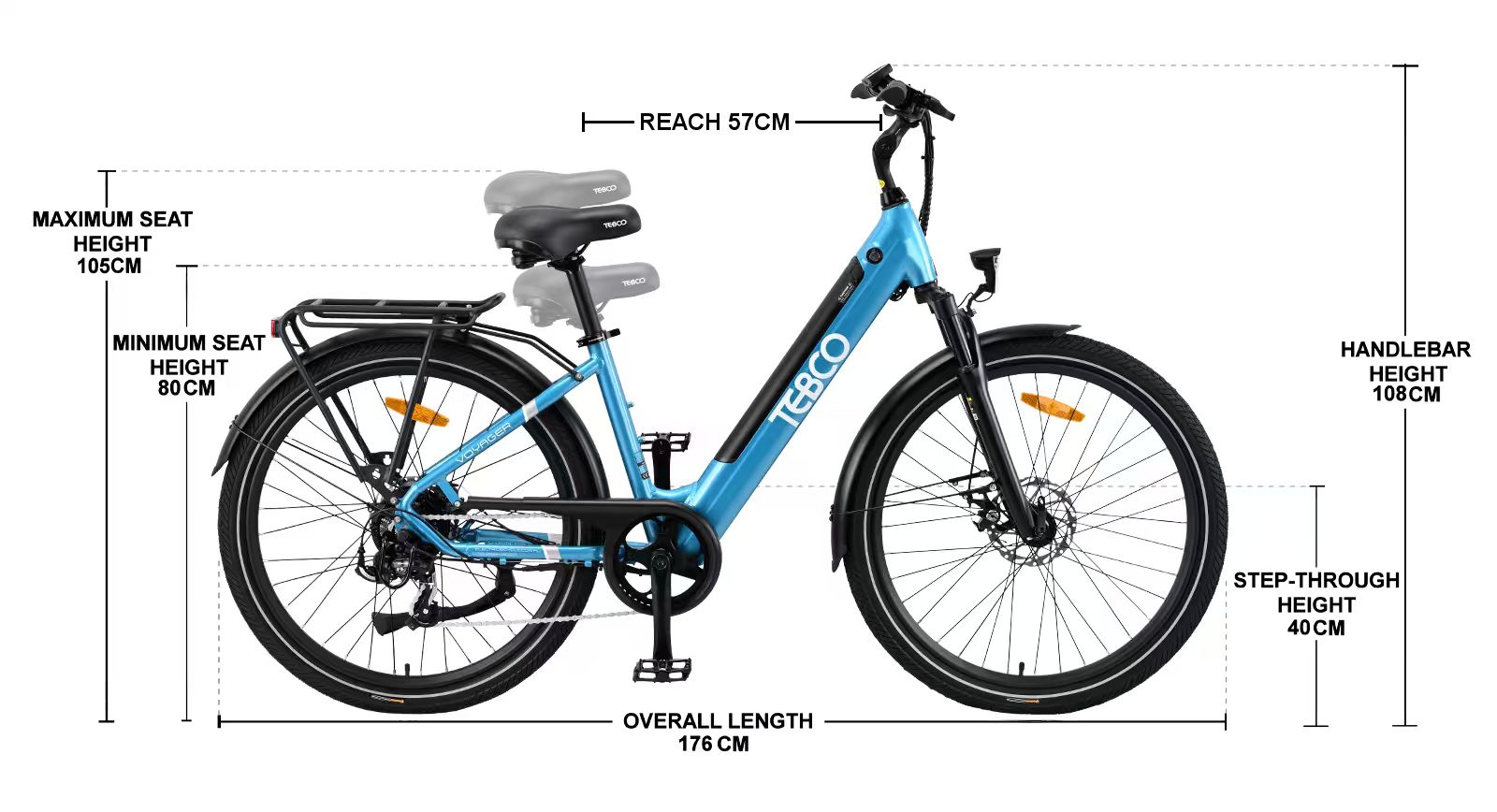

DIMENSIONS

SUBURBAN Dimensions

DISPLAY

ELITE

Top of the range with digital Trip Computer, Speedometer, Odometer, Battery Charge Level, Pedal Activation System.

$2399

Power Assisted Bicycles (PABS)

200W motor output
The motor is activated by either a ‘twist grip accelerator’ OR by ‘pedal activation’

Electric Powered Activated Cycles (EPACS)

250W motor output - new category
The motor is ONLY activated by ‘pedal activation’ In short you MUST pedal to activate the motor and if you STOP peddling, the motor stops.

×
